Red Hot PCB: Touch Sensors for Musical Instruments

By The MacroFab Team  |  November 10, 2017

This week’s Red Hot PCB from our assembly line comes from Vindor Music. The Boston-area startup develops intuitive and affordable electronic instruments that make it easy to play music and their vision is to simplify the way people learn to play instruments and connect through music. They just launched a successful kickstarter campaign for the Vindor ES1 electronic saxophone.

Vindor pcb

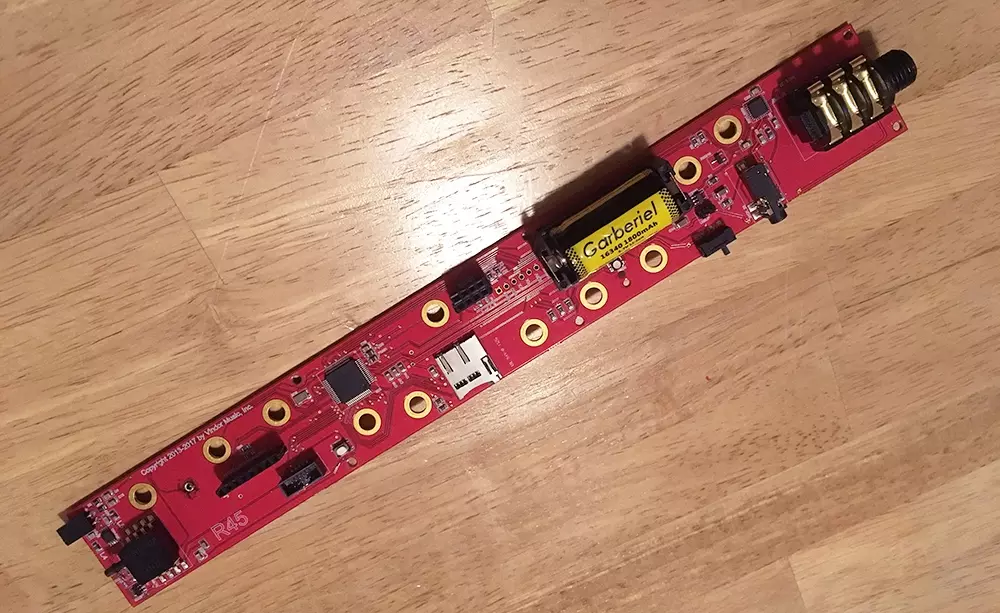

We assembled the guts of the ES1, which uses an NXP Kinetis ARM processor with integrated touch sensing hardware, NXP SGTL5000 low-power audio codec to generate the sound and an NXP air pressure sensor to detect the level of blowing. The on-board TI Class D amplifier powers a small speaker and an Microchip power management IC is used to control the Li-ion battery that provides 4 hours of untethered play. It has a 1/4″ jack for connecting to a guitar amplifier as well as a standard headphone jack.

Vindor Music tells us that the feedback we provided during development was crucial for catching small but potentially fatal bugs. For example, in one iteration even though the pad spacing for the CPU was off, we were able to make adjustments and manufacture a working board. With our feedback, they were able to correct the problem for future iterations.

Side straight fb 700x366

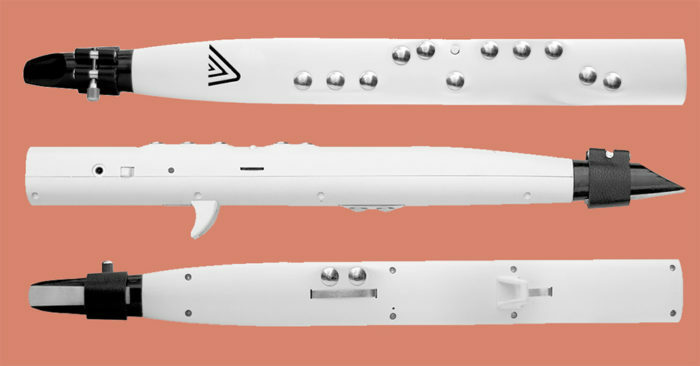

The instrument is used by high school students and professional musicians. One band, Moon Hooch, is currently taking it on their worldwide tour.

Thanks to Fen with Vindor Music for his contributions on this post!
