Red Hot PCB: Four Port USB Charger

By The MacroFab Team  |  May 14, 2018

The Pirl USB Charger allows any USB-A compatible device to charge up to 2.7A per port. It intelligently detects the maximum power a device requires and delivers it. There is no throttling when multiple devices are plugged in because each charging channel is independent.

There is a wattmeter to show how many watts you’re drawing as well as a dimmer to change the brightness of the display.

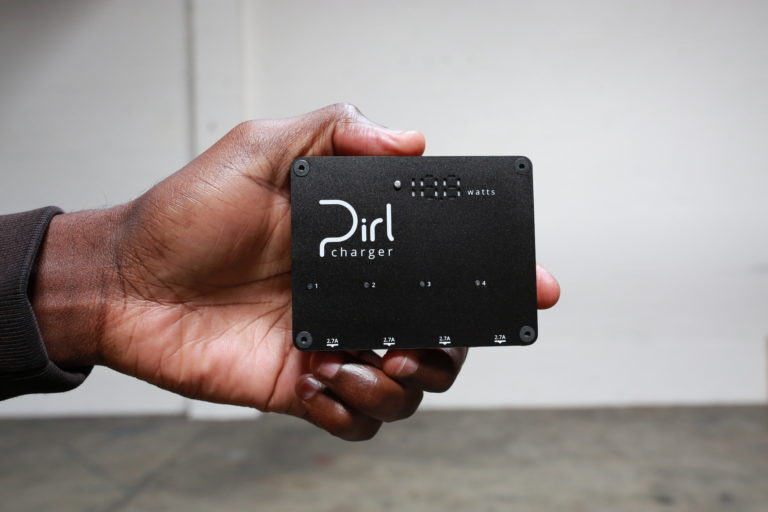

Hand held 1 768x512

Multiple input and output protections are in place to protect itself and your devices including reverse polarity, short circuit, static discharge and overheating. The Pirl USB Charger also compensates for the voltage drop across wires into devices.

It is a DC input charger (7V to 17V), which means it can be used with multiple inputs options such as wall adapters, car cigarette adapters, battery packs, lead-acid batteries, and solar panels.

What parts were used for the PCB?

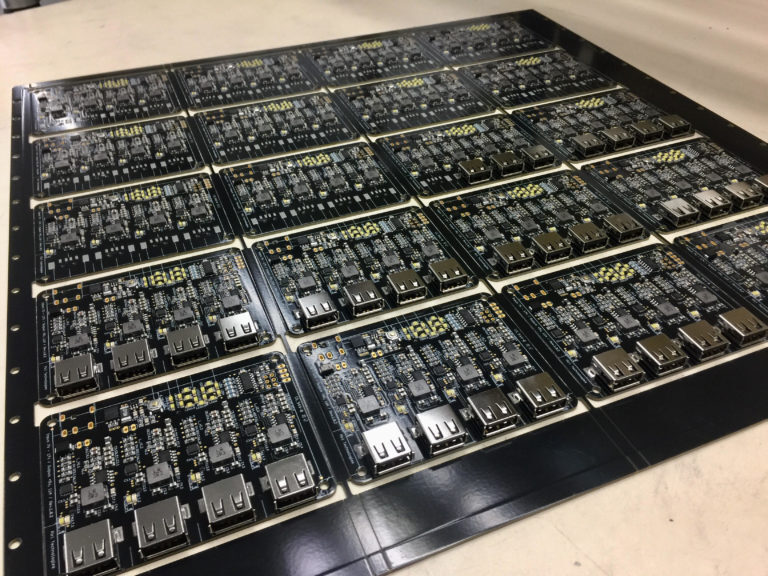

USB Charge Controller, DC-DC Buck Converter, USB-As Inductors, ESD Protection Chips, Ferrite beads, LEDs, Capacitors, Resistors, Light pipes, ATtiny Microcontroller, DC Power Jack, Current Amplifier, MosfetTVS diode.

USB Mounted1 768x576

USB Mounted1 768x576

How did you come up with the idea?

We were tired of carrying multiple chargers and wanted one charger that was robust enough to replace all our chargers. We used to have to use a multimeter to check how many watts our devices were drawing, and so we decided to build it in a wattmeter. It was also important to have a charger we could use in any environment. The Pirl Charger can be used at homes, offices, in cars or outdoors. It’s great for traveling as you only need one charger, and when you’re in countries with blackouts and grid surges, the Pirl will protect itself and your devices.

Their Kickstarter will be launching soon. Learn more at PirlCharger.com.

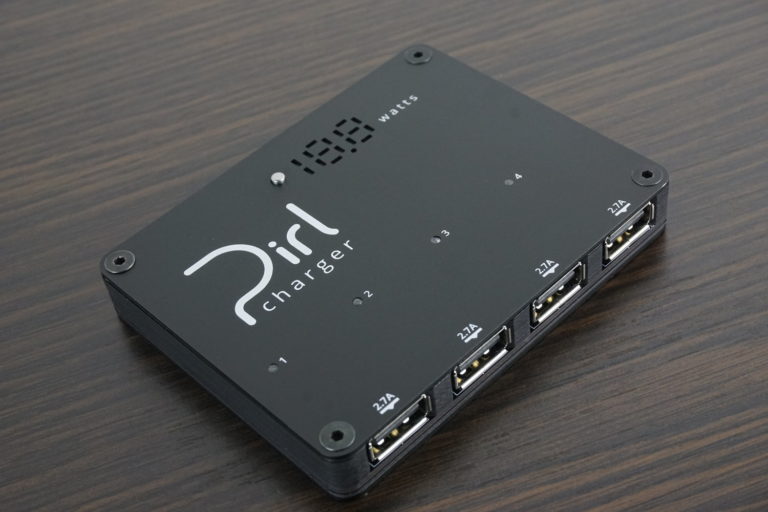

On wood2 768x512

Thank you Kobby Osei for your contribution to this Red Hot PCB article!
